NoobSynth

By Warnotte Renaud

February 14, 2023

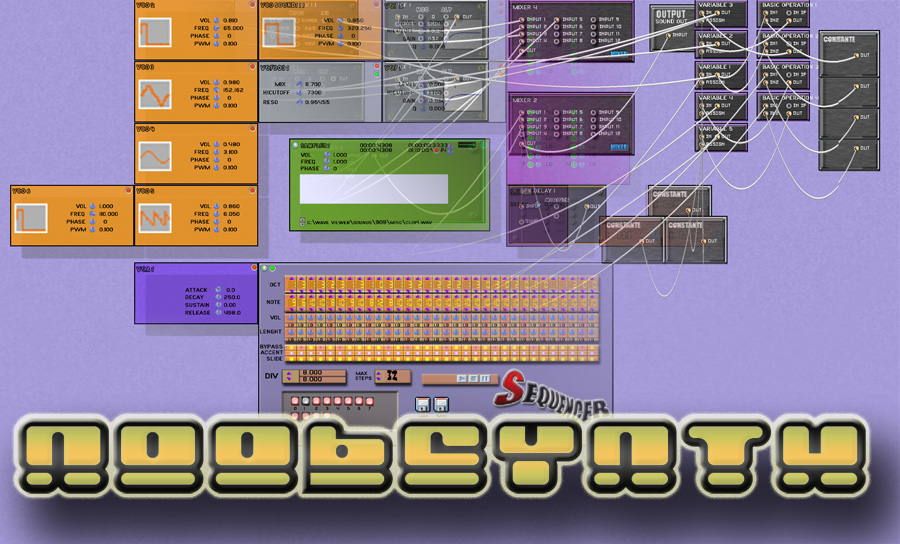

Modular Synthethisor with graphic interface + hard/soft remote control (telecommande on 8255, interfaced on a distant PC). He allows creating any kinds of synthethisor by the overlap of various modules one in another.

Synthethiseur modulaire avec interface graphique + controle a distance soft/materiel (telecommande sur 8255,interfac�e sur un PC distant & NoteDetector). Il permet de creer toute sortes de synthethiseur par l’imbrication de divers modules les uns dans les autres.

It contains :

Synthesizer editor/player.
- Remote Connection.
- Include :
  - CONTROLERS
    - KEYBOARD:
    - SEQUENCEUR:
  - GENERATORS
    - SAMPLER: WAV/MP3/OGG/… Player
    - VCO: Oscillator Generation
    - MULTI_VCO: Multiple OSC Generation
    - FAKE303: Like the TB303 :) (must have)
  - ENVELOPPES
    - VCA: A simple Enveloppe follower
  - FILTERS
    - VCF: A 7 Type Filter (Low,High,Notch, BandPass, LowShelf, HighShelf).
    - VCF303: A 303 VCF hack.
    - FORMANT_VCF: A Vowel Filter for A E I U O
  - MATHEMATICS
    - CONSTANTE: Can hold a Constante variable
    - BASIC_OPERATION: Can make mathematical operation
    - DISPLAYER: Can draw at screen
    - VARIABLE: Can Hold a value in variable, like a variable
  - IO
    - MIXER: …
    - MICRO: Act as the micro input (or the actual chosen recording device)
    - SOUND_IN: Simulate a Generator Input
    - SOUND_OUT: Simulate a Generator Output
    - GENERATOR: That will contain everything (vco, vcf, generators)
  - EFFECTS
    - SFX_DELAY: Variable Delay with a ring buffer (use with mixer to wet/dry)
    - PHASER: Classic Phaser Effect
  - …
Polyphonic synthesizer player.
- Remote Connection.
- 6 Voices Polyphony.
- …
Remote NoteDetector.
- Usefull to tune guitar or instrument.
- Can be used as an “instrument keyboard” inside Wsyplayer or Editor.
- …
Skin designer.

OUTSortie du circuit vers le buffer audio

VCO(LFO)

Generateur de signal de differents type
[Sinus, Triangle, Sawtooth, Noise, Pulse]

VCA

Controleur d’enveloppe (Attack,Decay, Sustain,Release)

VCF

Filtre avec 7 Type (Low, High, Band, Notch, …)

MIXER

Additionne les sources sonores

SAMPLER

Generateur de son a partir de sample.

�

KEYBOARD

Keyboard avec memoires

SEQUENCEUR

Generateur de note pour les differents modules (VCO, SAMPLER, etc …)
ainsi que d’un TRIGGER(VCA, …)

BASIC_OPERATION

Permet de brancher 2 instrument et d’effectuer divers operations mathematique (+-/*)
ou d’effectuer des tests (IF, <=, >, AND, OR, XOR, …) et meme de Switche 2 canaux.
